490 - power steering pump (chassis) for Nissan Vanette Serena KVC23

	Frame / Series KVC23 / C23 body W (wagon ) engine CD20ET (2000 diesel turbo ﾃﾞﾝｾｲ) drive 2WD (two-wheel drive ) Manufacture period 01.1997 - 01.1998 grade FX transmission AT (automatic transmission )

---

Applies for models	Manufacture period	Spec
CD20 +CD20T	05.1994 - 01.1997

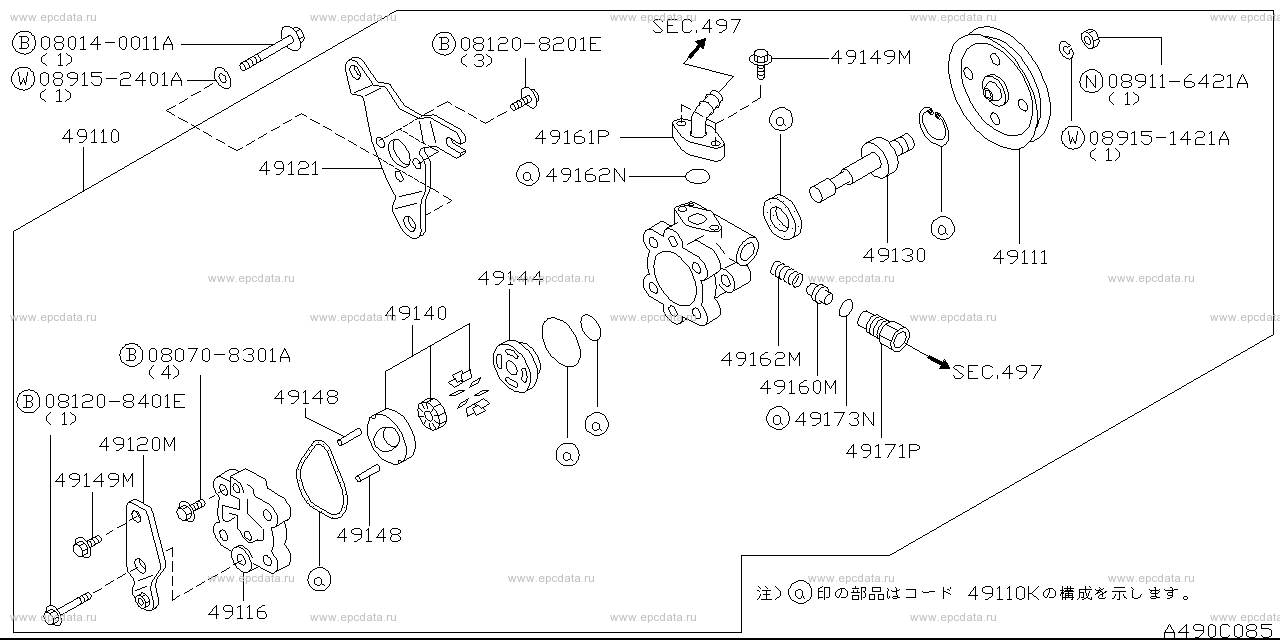

Open full screen picture Up to the top

081208202F 081240251E 089112422A 0891514210 089152401A 49110 - pump assembly, power steering 49110A - bolt 49110K - seal kit, power steering pump 49111 - pulley, power steering pump 49116 - cover, rear power steering pump 49121 - bracket assembly, power steering pump 49130 - shaft, drive power steering pump 49140 - rotor & cam ring set, power steering pump 49144 - plate, side power steering pump 49145 - spring, side plate 49148 - pin, cam ring power steering pump 49149 - bolt, bracket power steering pump 49160M - valve assembly, flow control 49161P - connector, inlet 49162M - spring, flow control valve 49162N - seal, inlet connector 49171P - connector, outlet 49173N - seal, outlet

---

Applies for models	Manufacture period	Spec
CD20 +CD20ET	01.1997 - 01.1998
CD20 +CD20ET	01.1998 - ...

Open full screen picture Up to the top

080140011A 080708301A 081208201E 081208401E 089116421A 089151421A 089152401A 49110 - pump assembly, power steering 49110K - seal kit, power steering pump 49111 - pulley, power steering pump 49116 - cover, rear power steering pump 49120M - bracket assembly, power steering pump 49121 - bracket assembly, power steering pump 49130 - shaft, drive power steering pump 49140 - rotor & cam ring set, power steering pump 49144 - plate, side power steering pump 49148 - pin, cam ring power steering pump 49149M - bolt, power steering pump 49160M - valve assembly, flow control 49161P - connector, inlet 49162M - spring, flow control valve 49162N - seal, inlet connector 49171P - connector, outlet 49173N - seal, outlet

Vanette Serena KVC23
